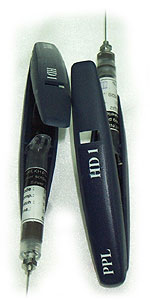

PPL-HD1
|
DESCRIPTION:-
The PPL-HD1 DISPENSER is a very practical and reliable hand
dispenser device for PPL BRAZING PASTES. |
APPLICATIONS:-
The PPL-HD1 DISPENSER is the ideal dispenser for jewellers. For
other users of brazing paste it is particularly suited for trials
and small series. |
FEATURES:- |
1.
Easy to use & light in weight. |
2.
For 3cc standard syringes having a maximum content
of brazing paste. |
3.
All standard needles of internal diameters from 0.25 to 1.2 mm can
be used. |
4.
N.B. With a 10g syringe & 0.40 needle, it is possible to
dispense 10,000 dots of brazing paste. |
5.
Low cost. |
|

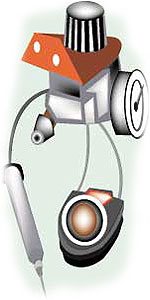

PPL-8400
|
DESCRIPTION:-
The PPL-8400 is a pneumatic dispenser for PPL BRAZING PASTE
controlled by a foot switch. It is a simple, robust and relatively
in expensive unit. |
APPLICATIONS:- The
PPL-8400 is ideally suited for dispensing brazing pastes in large
quantities where varying amounts of paste per work piece is required
or where an economical solution desired. |
FEATURES:- |
1.
The dispensing is controlled by the operation of the foot pedal. |
2.
Syringes of 10cc ( 30g) or 30cc(100g) can be used. |
3. A
pressure gage indicates the pressure applied on the brazing paste. |
4.
Compressed air is required (appox. 7 bar). |
|

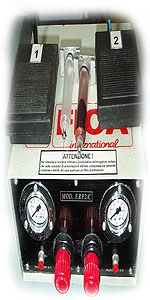

PPL-8300
|
DESCRIPTION:-The
PPL-PASTE DISPENSER PPL - 8300 is a robust, compact
electro-pneumatic dispensing device for PPL BRAZING PASTES. The
dispensing is controlled ley a timer or a foot switch. |
APPLICATIONS:-The
PPL PASTE DISPENSER PPL - 8300 is ideally suited for dispensing
brazing paste of equal amounts on large series. |
FEATURES:- |
1.
The amount of paste dispensed is controlled by selecting a
combination of air pressure, needle size and time setting. |
2.
It is easy to set up and use. |
3.It
can be integrated in manufacturing lines |
4.
Compressed air (approx. 7 bar) and a 220 V/50 Hz electrical supply
are required |
5.Syringes
of all available sizes can be used. |
